Technical Data
| Unit type | Imperial |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | NPT |
| Color | Grey |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 1/8″ |

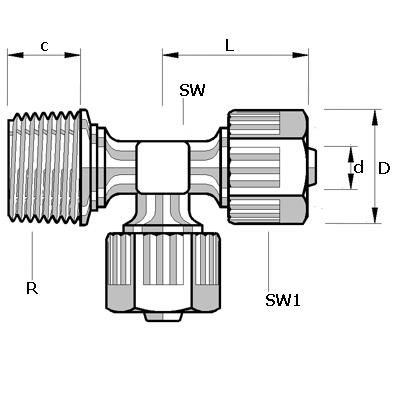

| Tube Outer Diameter 1 | 1/2″ |
| D | 21.5 mm |
| d small | 12 mm |
| Carton Quantity | 250 |
| L mm | 55.5 |
| L1 mm | 27.2 |
| OD inch | 1/2″ |
| M NPT | 1/8″ |
