Technical Data
| Unit type | Imperial |
|---|---|
| Material | Polypropylene |
| Thread Type | BSP |
| Color | Black |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 1″ |

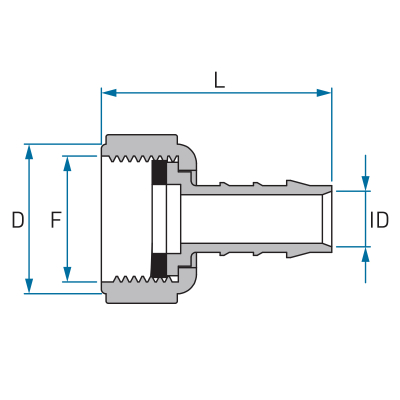

| d small | 7.2 mm |
| L mm | 36.8 |
| F BSPT | 1″ |
| Hose Inner Diameter 1 | 3/4″ |
| Tube ID inch | 3/4″ |
| D mm | 39.7 |
