Technical Data
| Unit type | Metric |
|---|---|
| Material | PVDF |
| Thread Type | BSP |
| Color | White |
| Temperature Range | -62° C up to +107° C (–80° F up to +226° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 1/2″ |

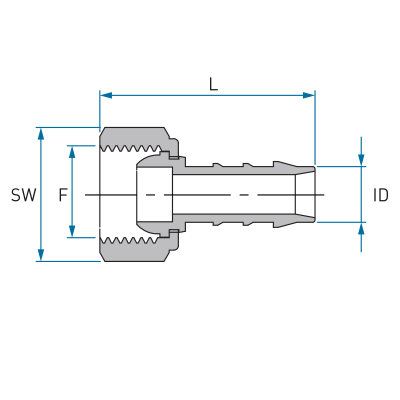

| L | 48 mm |
| C | 29.5 mm |
| d small | 7.2 mm |
| Carton Quantity | 150 |
| L mm | 48.9 |
| F BSPT | 1/2″ |
| SW mm | 24 |
| Hose Inner Diameter 1 | 14 mm |
| C1 | 17 mm |
| ID mm | 14 |
