Technical Data
Unit type | Imperial |
---|---|
Material | Nylon 66 |
Thread Type | NPT |
Color | Grey |
Temperature Range | -20° C up to +110° C (–5° F up to +230° F) |
Working Pressure | Up to 14 bar (200 psi) at +20° C |

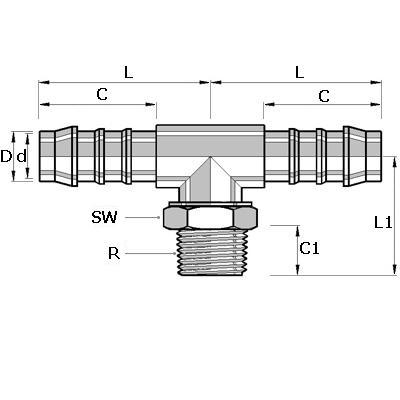

Tube ID inch | 3/4″ |
M NPT | 3/4″ |
L mm | 90.5 |
L1 mm | 52.5 |
SW mm | 27 |
