Technical Data
| Unit type | Metric |
|---|---|
| Material | Acetal |
| Thread Type | BSPT |
| Color | Black |
| Temperature Range | -20° C up to +90° C |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 3/8″ |
| Tube Outer Diameter 1 | 12 mm |

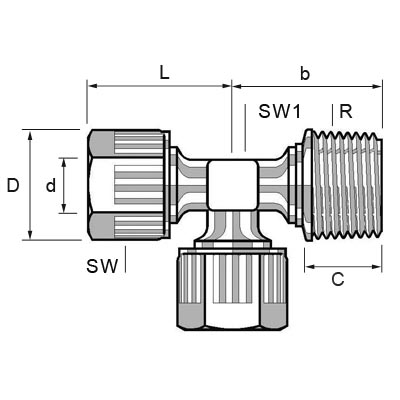

| D | 25.5 mm |
| L | 33 mm |
| C | 10 mm |
| d small | 7.2 mm |
| Carton Quantity | 50 |
| OD mm | 12 |
| Thread BSPT inch | 3/8″ |
