Technical Data
| Unit type | Metric |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 3/8″ |

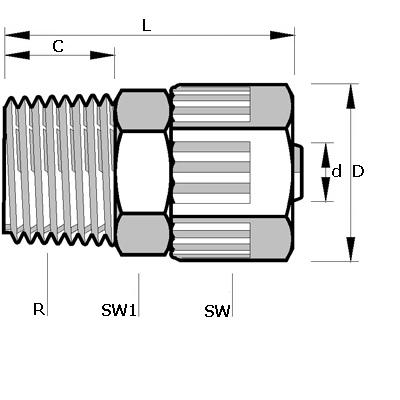

| Tube Outer Diameter 1 | 10 mm |
| D | 19.3 mm |
| L | 36 mm |
| C | 10.5 mm |
| d small | 9.2 mm |
| Carton Quantity | 200 |
| L mm | 35.8 |
| OD mm | 10 |
| SW mm | 17 |
| M BSPT | 3/8″ |
