Technical Data
| Unit type | Metric |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPP |
| Color | Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

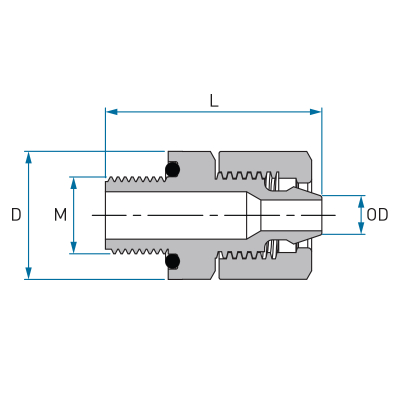

| Tube OD mm | 8 |
| M BSPP | 1/4'' |
| L mm | 28.4 |
| D mm | 16 |
| O Ring Material | NBR |
