MixRite 2.5 PVDF Air Release
Download brochure
Tutorial

The MixRite can be used in the application of fertilizer and chemicals through an irrigation system. This technique can reduce fertilizer application costs. It may also improve nutrient efficiecy by applying them closer to when and where plants need them.

Technical Data

MixRite Type PVDF
Working Pressure ‎0.2–8 bar
Thread Type BSPT
Thread Size 3/4″
Water Pressure ‎0.2–8 bar [3 to 116 psi]
Coupling 3/4″
ON OFF System No [Air Release]
Dosage Rate ‎0.3%–2%
Flow Rate Range ‎20–2500 l/h [0.09 to 11 gpm]
Chemical Resistance Extreme
Min Injection Per Hour 0.06 l/h [0.016 gph]
Max Injection Per Hour 50 l/h [13.21 gph]
Application Segment Industrial
Material PVDF

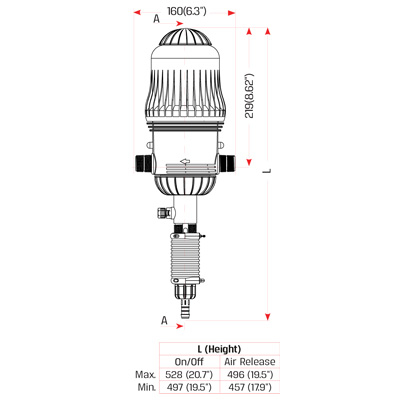

Dimensions 22″ × 7.27″
Weight 4 pound [1.81 kg]
Min Pressure Loss 0.2 bar
Max Pressure Loss 0.85 bar
Chemical Bypass Internal
PulseRite
Foot Valve
