Fittings especially suitable for connecting L.D.P.E. agricultural pipes, Class 2.5 and Class 4 and other flexible pipes. Good resistance to chemicals and fertilizers.

Technical Data

Unit type

Imperial

Material

Polypropylene

Thread Type

BSPT

Color

Black

Temperature Range

+4° C up to +90° C (+40° F up to +195° F)

Working Pressure

Up to 14 bar (200 psi) at +20° C

Thread Size

1″

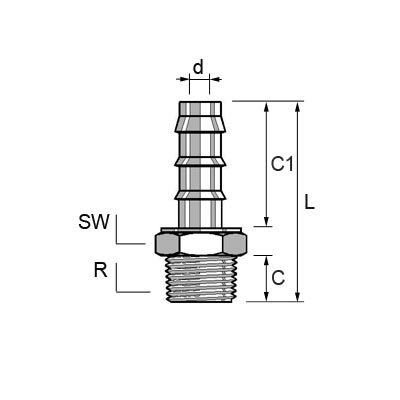

D

16.5 mm

d small

7.2 mm

Carton Quantity

150

L mm

59.1

OD mm

20

SW mm

35

M BSPT

1″

Sharp barb

No

Hose Outer Diameter

20 mm
