Technical Data
Unit type | Imperial |
---|---|
Material | Nylon 66 |
Thread Type | NPT |
Color | Grey |
Temperature Range | -20° C up to +110° C (–5° F up to +230° F) |
Working Pressure | Up to 14 bar (200 psi) at +20° C |
Thread Size | 3/8″ |

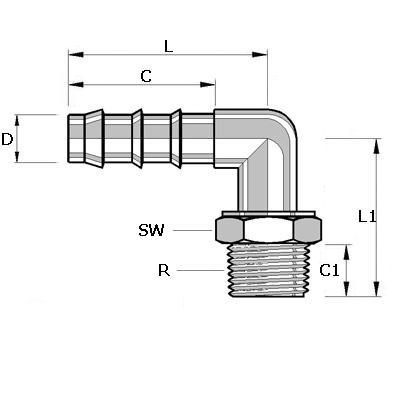

D | 12 mm |
L | 41 mm |
C | 28 mm |
Carton Quantity | 150 |
L mm | 48.3 |
L1 mm | 28.6 |
M NPT | 3/8″ |
Tube ID inch | 1/2″ |
Hose Inner Diameter | 1/2″ |
