Technical Data
Unit type | Imperial |
---|---|
Material | Nylon 66 |
Thread Type | NPT |
Color | Grey |
Temperature Range | -20° C up to +110° C (–5° F up to +230° F) |
Working Pressure | Up to 14 bar (200 psi) at +20° C |
Thread Size | 3/4″ |

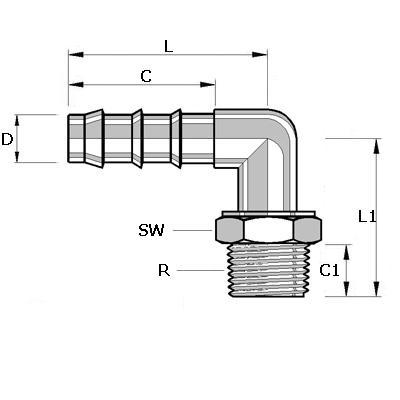

D | 14 mm |
L | 42.5 mm |
C | 29.5 mm |
Carton Quantity | 200 |
L mm | 51.5 |
L1 mm | 48.5 |
M NPT | 3/4″ |
Tube ID inch | 9/16″ |
Hose Inner Diameter | 9/16″ |
