Fittings especially suitable for connecting plastic, rubber of soft p.v.c hoses in industrial and domestic applications. As these hoses have various wall thicknesses the size is by ID measurement.
| Unit type | Metric |
|---|---|
| Material | Nylon 66 |
| Thread Type | BSPT |
| Color | Blue |
| Temperature Range | -20° C up to +110° C (–5° F up to +230° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

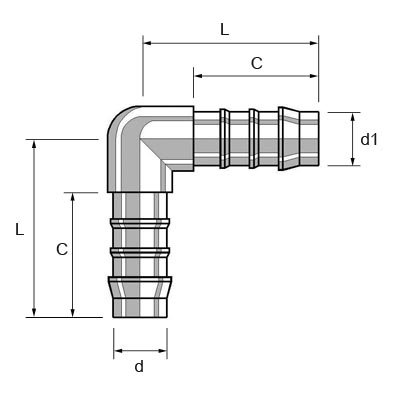

| D | 8 mm |
| L | 36.5 mm |
| C | 25 mm |
| Carton Quantity | 400 |
| L mm | 41.6 |
| L1 mm | 39.3 |
| Hose Inner Diameter 1 | 8 mm |
| Tube ID mm | 8 |
| Hose Inner Diameter 2 | 6 mm |
| Tube ID1 mm | 6 |
