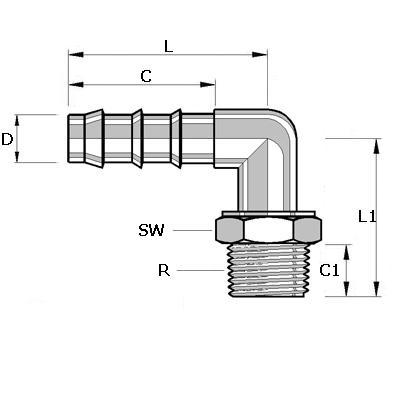

Technical Data
| Unit type | Metric |
|---|---|
| Material | Nylon 66 |
| Thread Type | BSPT |
| Color | Blue |
| Temperature Range | -20° C up to +110° C (–5° F up to +230° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Tube ID mm | 10 |
| M BSPT | 3/4″ |
| L mm | 45.5 |
| L1 mm | 38.9 |
| SW mm | 27 |
Fittings especially suitable for connecting plastic, rubber of soft p.v.c hoses in industrial and domestic applications. As these hoses have various wall thicknesses the size is by ID measurement.
-
