Technical Data
| Material | Polypropylene |
|---|---|
| Color | Black |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

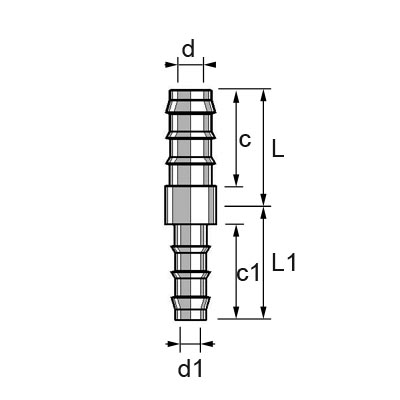

| L | 38.5 mm |
| C | 32.5 mm |
| d small | 21 mm |
| Carton Quantity | 250 |
| L mm | 76.7 |
| OD mm | 25 |
| C1 | 32.5 mm |
| L1 | 38.5 mm |
| d1 small | 16.5 mm |
| OD1 mm | 20 |
| Hose Outer Diameter 1 | 25 mm |
| Following selection by | OD |
| Sharp barb | No |
| Hose Outer Diameter 2 | 20 mm |
