Fittings especially suitable for connecting L.D.P.E. agricultural pipes, Class 2.5 and Class 4 and other flexible pipes. Good resistance to chemicals and fertilizers.

Technical Data

Material

Polypropylene

Color

Black

Temperature Range

+4° C up to +90° C (+40° F up to +195° F)

Working Pressure

Up to 14 bar (200 psi) at +20° C

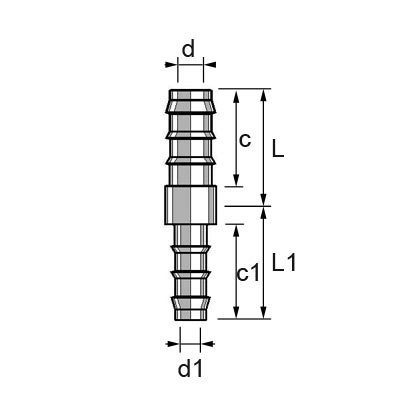

L

38.5 mm

C

32.5 mm

d small

16.5 mm

Carton Quantity

350

L mm

72.9

OD mm

20

C1

28 mm

L1

33 mm

ID mm

12

d1 small

12 mm

Hose Outer Diameter 1

20 mm

Hose Inner Diameter

12 mm

Following selection by

ID

Sharp barb

No
