Fittings especially suitable for connecting L.D.P.E. agricultural pipes, Class 2.5 and Class 4 and other flexible pipes. Good resistance to chemicals and fertilizers.

Technical Data

Material

Polypropylene

Color

Black

Temperature Range

+4° C up to +90° C (+40° F up to +195° F)

Working Pressure

Up to 14 bar (200 psi) at +20° C

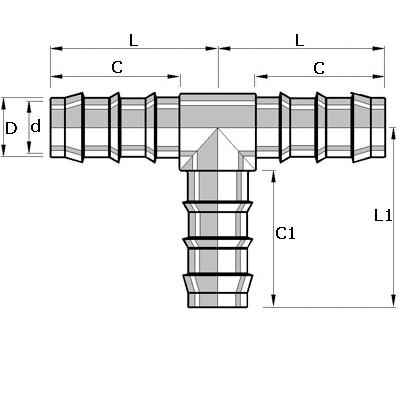

D

10 mm

L

36 mm

C

30 mm

d small

7.2 mm

Carton Quantity

125

L mm

72.7

L1 mm

44.6

Tube OD mm

12

C1

30 mm

L1

38 mm

Hose Outer Diameter 1

12 mm

Following selection by

OD

Sharp barb

No

Hose Outer Diameter

12 mm
