Technical Data
| Unit type | Metric |
|---|---|
| Material | Polypropylene |
| Color | Black |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

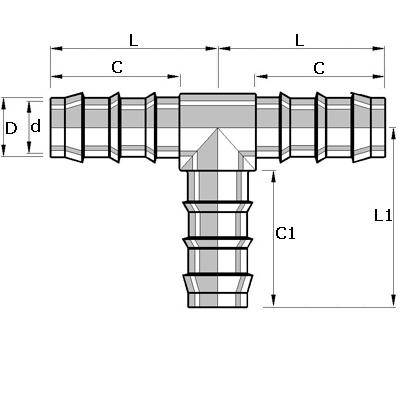

| D | 13 mm |
| L | 38 mm |
| C | 30 mm |
| d small | 7.2 mm |
| Carton Quantity | 250 |
| L mm | 77 |
| L1 mm | 47.8 |
| Tube OD mm | 16 |
| C1 | 30 mm |
| L1 | 40 mm |
| Hose Outer Diameter 1 | 16 mm |
| Following selection by | OD |
| Sharp barb | No |
| Hose Outer Diameter | 16 mm |
