Fittings especially suitable for connecting L.D.P.E. agricultural pipes, Class 2.5 and Class 4 and other flexible pipes. Good resistance to chemicals and fertilizers.

Technical Data

Material

Polypropylene

Color

Black

Temperature Range

+4° C up to +90° C (+40° F up to +195° F)

Working Pressure

Up to 14 bar (200 psi) at +20° C

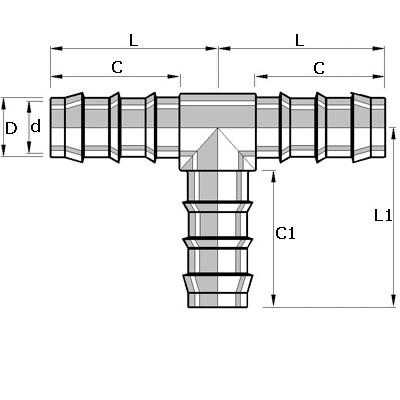

D

16.5 mm

L

42.5 mm

C

32.5 mm

d small

7.2 mm

Carton Quantity

175

L mm

84.8

L1 mm

54.7

OD mm

20

C1

32.5 mm

L1

45 mm

Hose Outer Diameter 1

20 mm

Following selection by

OD

Sharp barb

No

Hose Outer Diameter

20 mm
