Technical Data
| Material | Polypropylene |
|---|---|
| Color | Black |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

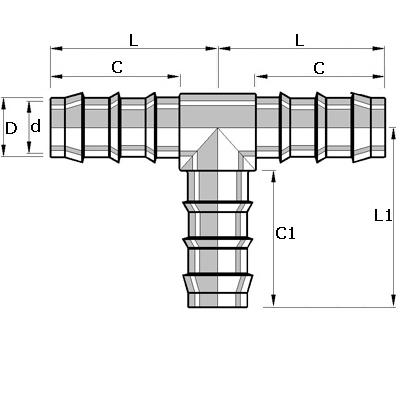

| D | 20.5 mm |
| L | 45 mm |
| C | 32.5 mm |
| d small | 7.2 mm |
| Carton Quantity | 125 |
| L mm | 72.8 |
| L1 mm | 44.6 |
| Tube OD mm | 25 |
| Hose Outer Diameter 1 | 25 mm |
| Following selection by | OD |
| Sharp barb | No |
| Hose Outer Diameter | 25 mm |
