Fittings especially suitable for connecting L.D.P.E. agricultural pipes, Class 2.5 and Class 4 and other flexible pipes. Good resistance to chemicals and fertilizers.

Technical Data

Unit type

Imperial

Material

Polypropylene

Thread Type

BSPT

Color

Black

Temperature Range

+4° C up to +90° C (+40° F up to +195° F)

Working Pressure

Up to 14 bar (200 psi) at +20° C

Thread Size

1/2″

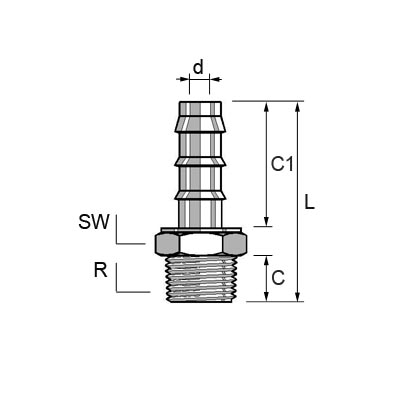

D

13 mm

L

50.5 mm

C

13 mm

d small

7.2 mm

Carton Quantity

450

L mm

51.5

OD mm

16

SW mm

22

M BSPT

1/2″

C1

30 mm

Sharp barb

No

Hose Outer Diameter

16 mm
