Technical Data
| Material | Polypropylene |
|---|---|
| Color | Black |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

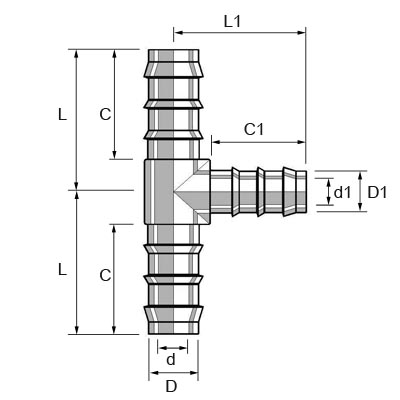

| D | 16.5 mm |
| L | 42.5 mm |
| C | 32.5 mm |
| d small | 7.2 mm |
| Carton Quantity | 150 |
| L mm | 84.7 |
| L1 mm | 53 |
| Tube OD mm | 20 |
| C1 | 41 mm |
| Tube ID mm | 19 |
| D1 | 19 mm |
| d1 small | 7.2 mm |
| Hose Outer Diameter 1 | 20 mm |
| Hose Inner Diameter | 19 mm |
| Following selection by | ID |
| Sharp barb | No |
