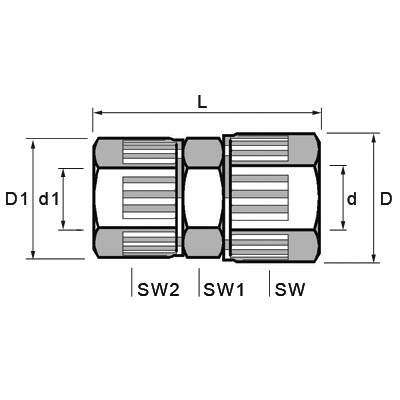

Technical Data
| Unit type | Imperial |
|---|---|
| Material | Acetal |
| Color | Black |
| Temperature Range | -20° C up to +90° C |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Tube Outer Diameter 1 | 3/8″ |
| D | 21 mm |
| d small | 7.2 mm |
| Carton Quantity | 200 |
| SW mm | 19 |
| OD inch | 3/8″ |
| Tube Outer Diameter 2 | 5/16″ |
| D1 | 18.5 mm |
| d1 small | 7.2 mm |
| SW2 | 16 mm |
| OD2 inch | 5/16″ |
