Technical Data

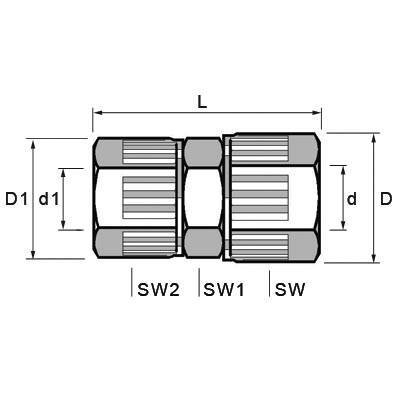

| Unit type | Metric |
|---|---|
| Material | Acetal |
| Color | Black |
| Temperature Range | -20° C up to +90° C |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| D | 18.5 mm |
| d small | 7.2 mm |
| Carton Quantity | 300 |
| Tube OD mm | 8 |
| SW mm | 17 |
| D1 | 16.5 mm |
| SW2 | 14 mm |
| Tube OD2 mm | 4 |
Hydraulic and pneumatic systems mostly indoor applications. Quick assembly without dismantling the fittings. Allowing uninterrupted passage of water or air.
-
