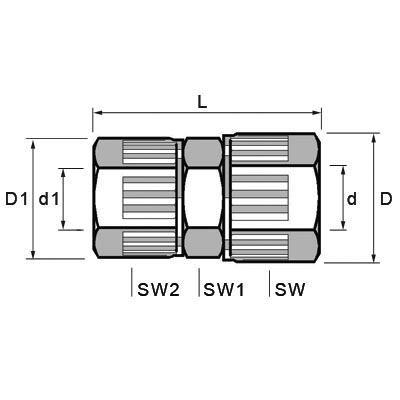

Technical Data
| Unit type | Metric |
|---|---|
| Material | Acetal |
| Color | Black |
| Temperature Range | -20° C up to +90° C |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Tube Outer Diameter 1 | 8 mm |
| D | 18.5 mm |
| d small | 7.2 mm |
| Carton Quantity | 300 |
| OD mm | |
| SW mm | 17 |
| Tube Outer Diameter 2 | 6 mm |
| D1 | 17.5 mm |
| d1 small | 7.2 mm |
| SW2 | 15 mm |
| OD2 mm | 6 |
