Technical Data
| Unit type | Imperial |
|---|---|
| Material | Acetal |
| Thread Type | BSPT |
| Color | Black |
| Temperature Range | -20° C up to +90° C |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 1/8″ |
| Tube Outer Diameter 1 | 5/16″ |

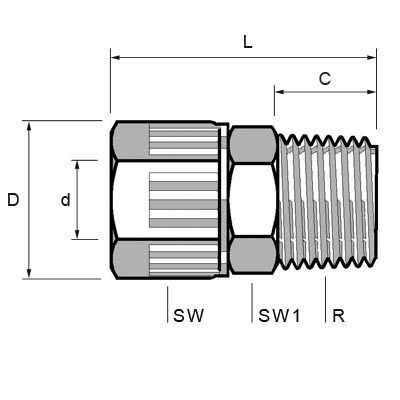

| D | 18.5 mm |
| L | 28 mm |
| C | 8 mm |
| d small | 7.2 mm |
| Carton Quantity | 400 |
| SW mm | 16 |
| OD inch | 5/16″ |
| M BSPT | 1/8″ |
