Technical Data
Unit type | Metric |
---|---|
Material | Reinforced Polypropylene |
Thread Type | BSPT |
Color | Blue |
Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
Working Pressure | Up to 14 bar (200 psi) at +20° C |
Tube Outer Diameter 1 | 12 mm |

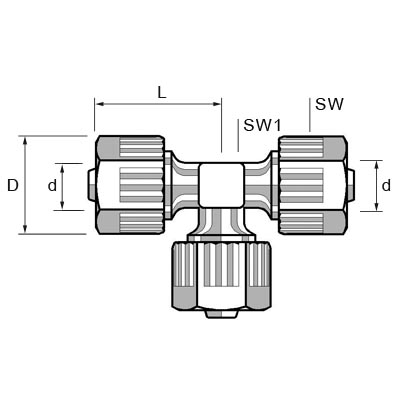

D | 21.5 mm |
L | 33 mm |
d small | 10.8 mm |
Carton Quantity | 50 |
L mm | 67.1 |
L1 mm | 40.3 |
OD mm | 12 |
