Technical Data
| Unit type | Imperial |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Navy Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

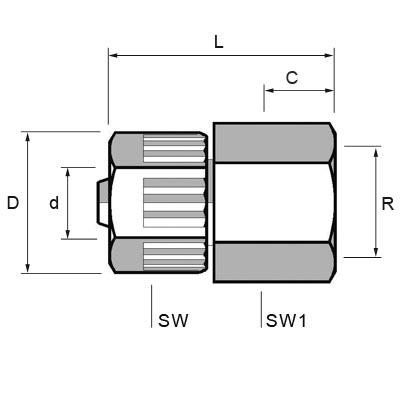

| D | 19.3 mm |
| C | 11 mm |
| d small | 9.2 mm |
| L mm | 35.4 |
| F BSPT | 1/2″ |
| SW mm | 26 |
| Tube OD inch | 3/8″ |
