Technical Data
| Unit type | Imperial |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Navy Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 3/4″ |
| Tube Outer Diameter 1 | 3/8″ |

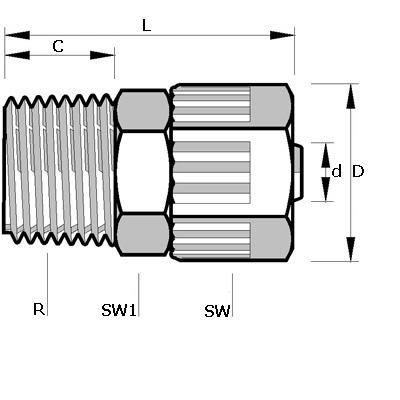

| D | 19.3 mm |
| L | 40 mm |
| C | 13 mm |
| d small | 9.2 mm |
| L mm | 39.7 |
| SW mm | 27 |
| OD inch | 3/8″ |
| M BSPT | 3/4″ |
