Technical Data
| Unit type | Imperial |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Black |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 1/2″ |
| Tube Outer Diameter 1 | 1/2″ |

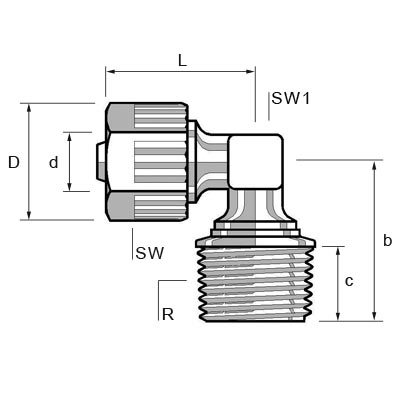

| D | 21.5 mm |
| L | 33 mm |
| C | 13 mm |
| d small | 12 mm |
| Carton Quantity | 100 |
| L mm | 40.3 |
| L1 mm | 36 |
| OD inch | 1/2″ |
| b small | 28.5 mm |
| M BSPT | 1/2″ |
