Technical Data
| Unit type | Metric |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 1/8″ |

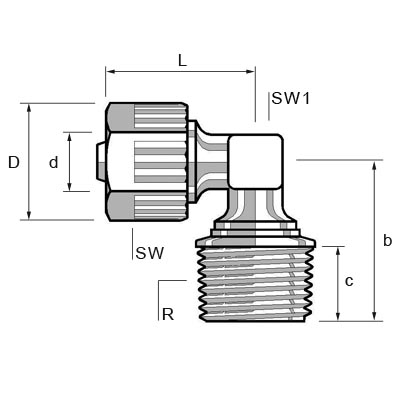

| Tube Outer Diameter 1 | 6 mm |
| D | 16 mm |
| L | 22.5 mm |
| C | 8 mm |
| d small | 6.2 mm |
| Carton Quantity | 450 |
| L mm | 27.5 |
| L1 mm | 22.5 |
| OD mm | 6 |
| b small | 18.5 mm |
| M BSPT | 1/8″ |
