Technical Data
| Unit type | Metric |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 3/8″ |

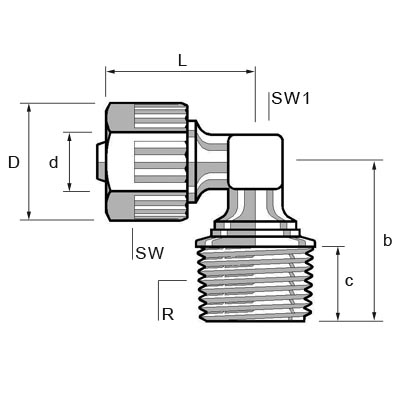

| Tube Outer Diameter 1 | 12 mm |
| D | 21.5 mm |
| L | 33 mm |
| C | 10 mm |
| d small | 12 mm |
| Carton Quantity | 150 |
| L mm | 40.4 |
| L1 mm | 32.3 |
| OD mm | 12 |
| b small | 24.5 mm |
| M BSPT | 3/8″ |
