Technical Data
Unit type | Imperial |
---|---|
Material | Reinforced Polypropylene |
Thread Type | BSPT |
Color | Navy Blue |
Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
Working Pressure | Up to 14 bar (200 psi) at +20° C |
Thread Size | 3/8″ |
Tube Outer Diameter 1 | 5/16″ |

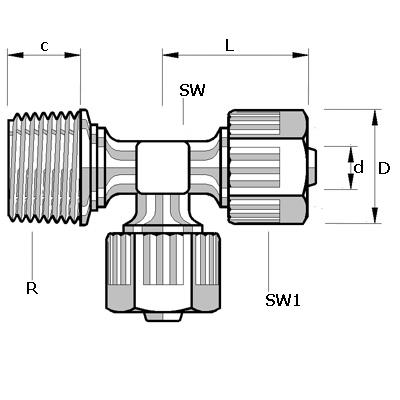

D | 16 mm |
L | 23.3 mm |
C | 10 mm |
d small | 7.2 mm |
Carton Quantity | 150 |
L mm | 58.8 |
L1 mm | 43.2 |
OD inch | 5/16″ |
M BSPT | 3/8″ |
