Technical Data
| Unit type | Imperial |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | NPT |
| Color | Grey |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

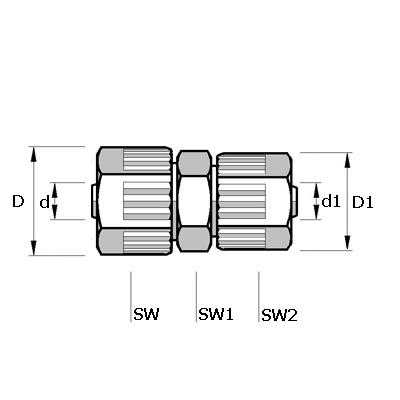

| Tube Outer Diameter 1 | 5/16″ |
| D | 16 mm |
| L | 32.5 mm |
| d small | 7.2 mm |
| Carton Quantity | 400 |
| L mm | 32.7 |
| SW mm | 14 |
| OD inch | 5/16″ |
| Tube Outer Diameter 2 | 1/4″ |
| D1 | 16 mm |
| d1 small | 6.2 mm |
| SW2 | 14 mm |
| OD1 inch | 1/4″ |
