Technical Data
Unit type | Imperial |
---|---|
Material | Reinforced Polypropylene |
Thread Type | NPT |
Color | Grey |
Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
Working Pressure | Up to 14 bar (200 psi) at +20° C |
Tube Outer Diameter 1 | 5/16″ |

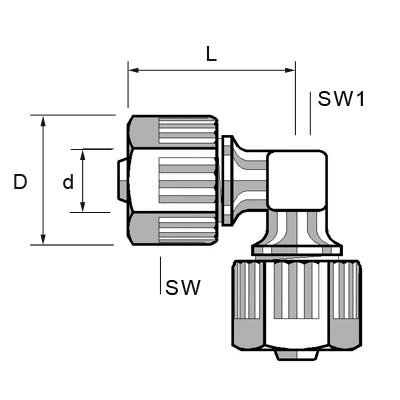

D | 16 mm |
L | 23.5 mm |
d small | 7.2 mm |
L mm | 27.5 |
OD inch | 5/16″ |
