Technical Data
| Unit type | Imperial |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | NPT |
| Color | Grey |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

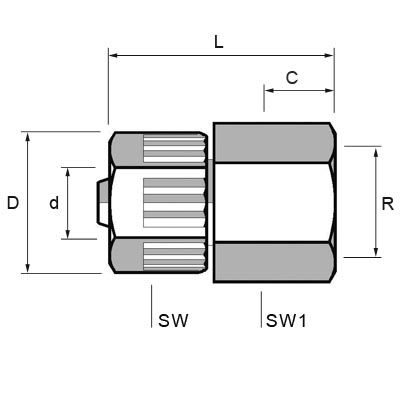

| D | 19.3 mm |
| C | 13.8 mm |
| d small | 9.2 mm |
| L mm | 34.5 |
| SW mm | 17 |
| Tube OD inch | 3/8″ |
| F NPT | 1/4″ |
