Technical Data
| Material | Reinforced Polypropylene |
|---|---|
| Thread Type | NPT |
| Color | Grey |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

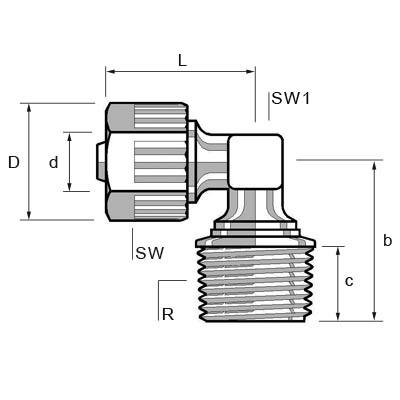

| D | 16 mm |
| C | 12.5 mm |
| d small | 7.2 mm |
| Carton Quantity | 400 |
| L mm | 27.5 |
| L1 mm | 24 |
| Tube OD inch | 5/16″ |
| b small | 23.5 mm |
| M NPT | 1/8″ |
