Technical Data
| Unit type | Imperial |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | NPT |
| Color | Grey |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Thread Size | 1/4″ |
| Tube Outer Diameter 1 | 1/4″ |

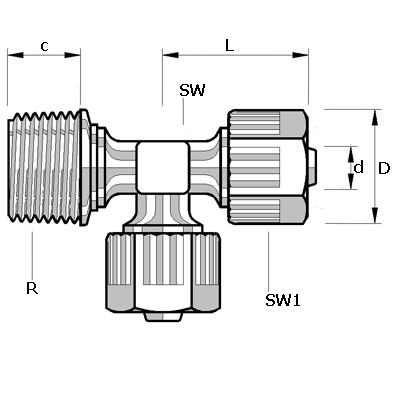

| D | 16 mm |
| d small | 6.2 mm |
| Carton Quantity | 200 |
| L mm | 48.2 |
| L1 mm | 27.4 |
| OD inch | 1/4″ |
| M NPT | 1/4″ |
