Technical Data

MixRite Type PVDF
Working Pressure ‎0.2–8 bar
Thread Type BSPT
Water Pressure ‎0.2–8 bar [3 to 116 psi]
Coupling 3/4″
ON OFF System Yes [Manual]
Dosage Rate ‎0.4%–4%
Flow Rate Range ‎20–2500 l/h [0.09 to 11 gpm]
Chemical Resistance Extreme
Min Injection Per Hour 0.08 l/h [0.02 gph]
Max Injection Per Hour 100 l/h [26.5 gph]
Application Segment Industrial
Material PVDF

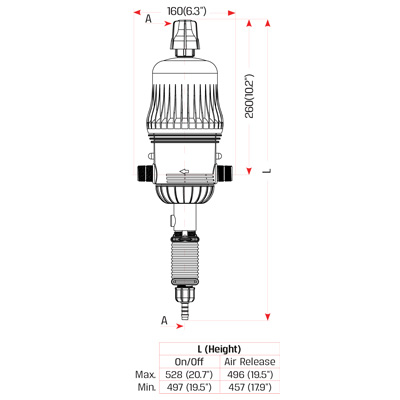

Dimensions 22″ × 7.27″
Weight 4 pound [1.81 kg]
Min Pressure Loss 0.2 bar
Max Pressure Loss 0.85 bar
Chemical Bypass Internal
