GardeningTechnical Data

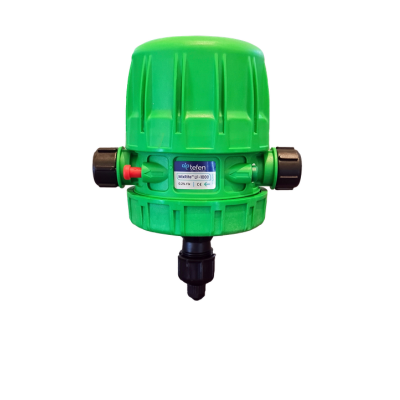

| Dosing Pump Model | MixRite LF-1000 |
|---|---|
| Thread Type | BSPT |
| MixRite Type | STD |
| Working Pressure | 0.2–8 bar |
| Water Pressure | 0.2–8 bar [3 to 116 psi] |
| Coupling | 3/4″ |
| ON OFF System | Yes [Manual] |
| Dosage Rate | 0.2% [Fixed Rate] |
| Flow Rate Range | 10–1000 l/h [0.04 to 4.4 gpm] |
| Chemical Resistance | Standard |
| Overview | MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates. |
| Min Injection Per Hour | 0.02 l/h [0.000088 gpm] |
| Max Injection Per Hour | 2 l/h [0.0088 gpm] |
| Inlet Size | 3/4″ |
| Application Segment | Gardening |
