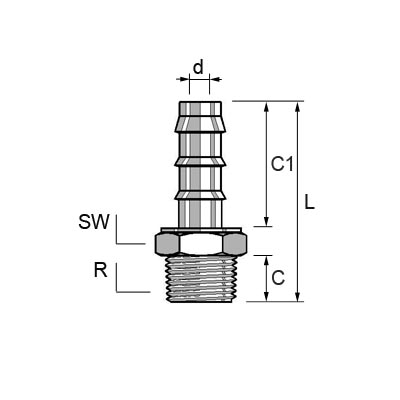

Technical Data
| Unit type | Imperial |
|---|---|
| Material | Polypropylene |
| Thread Type | BSPT |
| Color | Black |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |
| Tube OD mm | 20 |
| M BSPT | 1/2″ |
| L mm | 52.2 |
| SW mm | 22 |
Fittings especially suitable for connecting L.D.P.E. agricultural pipes, Class 2.5 and Class 4 and other flexible pipes. Good resistance to chemicals and fertilizers.
-
