Technical Data
| Unit type | Metric |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

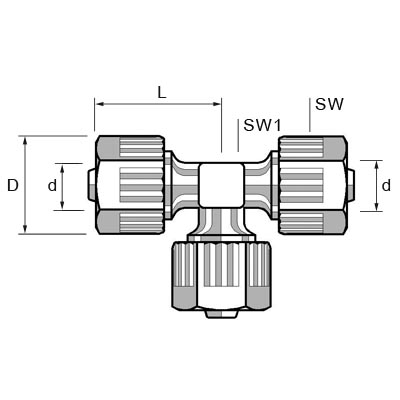

| D | 16 mm |
| d small | 6.2 mm |
| Carton Quantity | 200 |
| L mm | 46.8 |
| L1 mm | 27.4 |
| Tube OD mm | 6 |
| Tube OD1 mm | 8 |
| SW2 | 14 mm |
