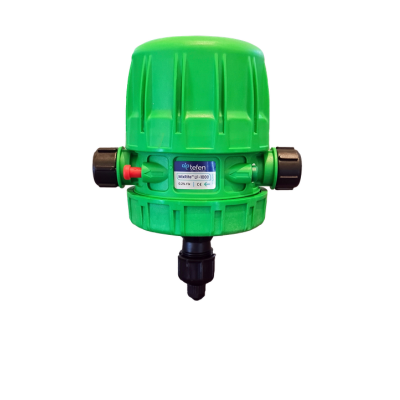

MixRite LF-1000

Technical Data

Dosing Pump Model MixRite LF-1000
Thread Type BSPT
MixRite Type STD
Working Pressure ‎0.2–8 bar
Water Pressure ‎0.2–8 bar [3 to 116 psi]
Coupling 3/4″
ON OFF System Yes [Manual]
Dosage Rate 0.2% [Fixed Rate]
Flow Rate Range ‎10–1000 l/h [0.04 to 4.4 gpm]
Chemical Resistance Standard
Overview MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates.
Min Injection Per Hour 0.02 l/h [0.000088 gpm]
Max Injection Per Hour 2 l/h [0.0088 gpm]
Inlet Size 3/4″
Application Segment Gardening
