Fittings especially suitable for connecting L.D.P.E. agricultural pipes, Class 2.5 and Class 4 and other flexible pipes. Good resistance to chemicals and fertilizers.

Technical Data

Material

Polypropylene

Color

Black

Temperature Range

+4° C up to +90° C (+40° F up to +195° F)

Working Pressure

Up to 14 bar (200 psi) at +20° C

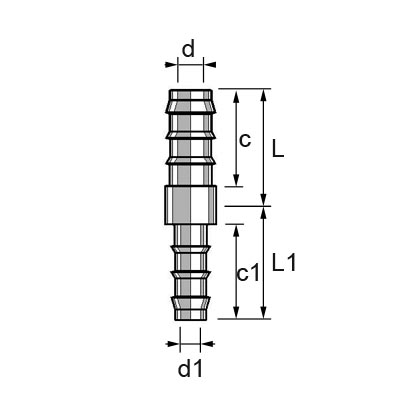

L

36 mm

C

30 mm

d small

10 mm

L mm

65

OD mm

12

C1

25 mm

L1

29.5 mm

ID mm

8

d1 small

5.6 mm

Hose Outer Diameter 1

12 mm

Hose Inner Diameter

8 mm

Following selection by

ID

Sharp barb

No
