Hydraulic systems. Excellent for indoor, outdoor and field applications.
| Unit type | Metric |
|---|---|
| Material | Reinforced Polypropylene |
| Thread Type | BSPT |
| Color | Blue |
| Temperature Range | +4° C up to +90° C (+40° F up to +195° F) |
| Working Pressure | Up to 14 bar (200 psi) at +20° C |

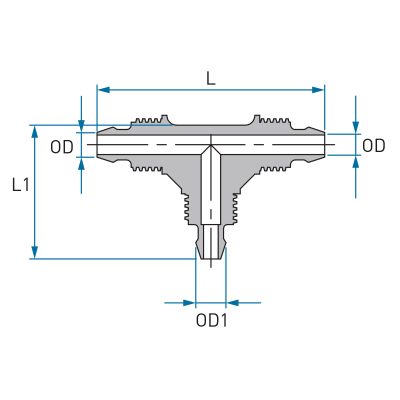

| Tube OD mm | 8 |
| Tube OD1 mm | 6 |
| L mm | 46.8 |
| L1 mm | 27.4 |
